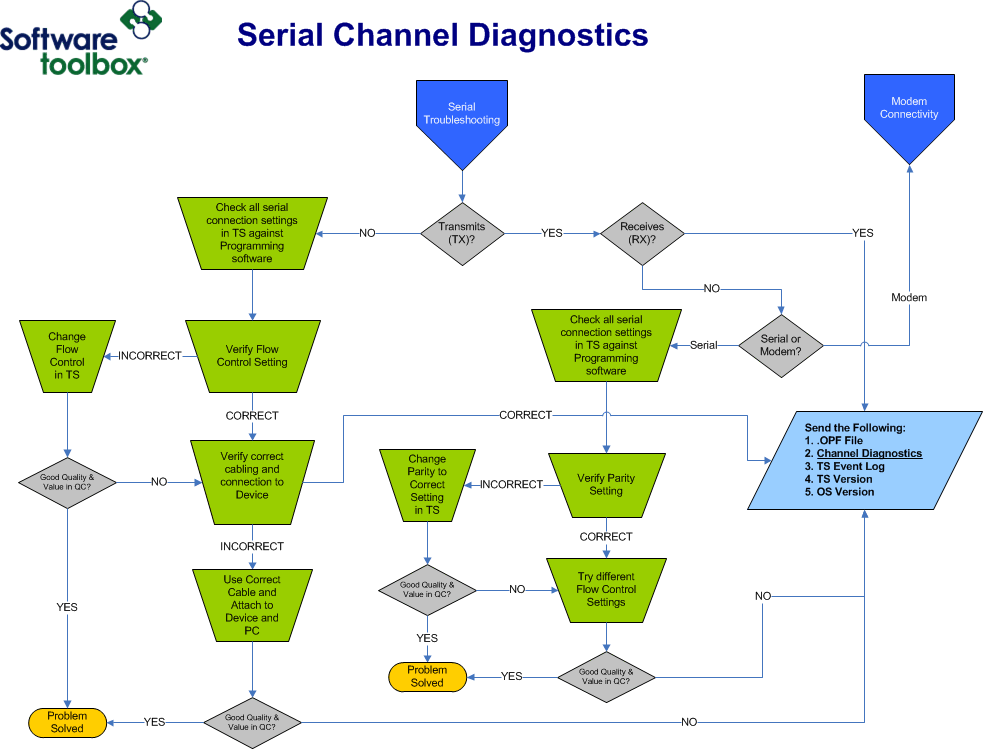

Serial Channel Diagnostics
Serial Troubleshooting Use Correct Cable and Attach to Device and PC Modem Connectivity Serial or Modem? Change Flow Control in TS Good Quality & Value in QC? Problem Solved Good Quality & Value in QC? Verify correct cabling and connection to Device Problem Solved Good Quality & Value in QC? Change Parity to Correct Setting in TS Good Quality & Value in QC? Send the Following: 1. .OPF File 2. Channel Diagnostics 3. TS... Check all serial connection settings in TS against Programming... Verify Flow Control Setting Try different Flow Control Settings Verify Parity Setting Check all serial connection settings in TS against Programming... Receives (RX)? Transmits (TX)?
